2023_open_source_contest_warmup_1st_issue2 finish
This commit is contained in:
Levi_Xubbbb
parent
9e44c39e22
commit
bcfb881a6a
|
|
@ -243,6 +243,10 @@ menu "test app"
|
|||
menuconfig USER_TEST_HASH
|
||||
bool "Config test hash"
|
||||
default n
|
||||
|
||||
menuconfig USER_TEST_RBTREE
|
||||
bool "Config test rbtree"
|
||||
default n
|
||||
|
||||
endif
|
||||
endmenu
|
||||
|
|
|
|||
|
|
@ -105,5 +105,9 @@ ifeq ($(CONFIG_ADD_XIZI_FETURES),y)
|
|||
SRC_FILES += test_hash/test_hash.c
|
||||
endif
|
||||
|
||||
ifeq ($(CONFIG_USER_TEST_RBTREE),y)
|
||||
SRC_FILES += test_rbtree/test_rbtree.c
|
||||
endif
|
||||
|
||||
include $(KERNEL_ROOT)/compiler.mk
|
||||
endif
|
||||
|
|
|
|||
|
|
@ -0,0 +1,109 @@
|
|||
# **基于cortex-m4-emulator实现红黑树并测试验证**
|
||||
|
||||
## 1. 简介
|
||||
|
||||
基于cortex-m4-emulator实现红黑树, 实现了红黑树的插入，查找，删除的功能。设计了一些数据进行测试。
|
||||
|
||||
## 2. 数据结构设计说明
|
||||
|
||||
```c
|
||||
// define color of red-black tree
|
||||
enum Color {RED, BLACK};
|
||||
|
||||
// define a node of red-black tree
|
||||
struct Node {
|
||||
int key;
|
||||
int value;
|
||||
enum Color color;
|
||||
struct Node *left, *right, *parent;
|
||||
};
|
||||
```
|
||||
|
||||
将红黑树的红黑属性设成枚举类型。红黑树的节点分别存储key，value，color，左右子，以及父节点。
|
||||
|
||||
## 3. 测试程序说明
|
||||
|
||||
```c
|
||||
void TestRBTree(void)
|
||||
{
|
||||
struct Node *root = NULL;
|
||||
printf("创建红黑树并且插入以下结点\n");
|
||||
printf("key: 7, value: 7\n");
|
||||
printf("key: 3, value: 3\n");
|
||||
printf("key: 18, value: 18\n");
|
||||
printf("key: 10, value: 10\n");
|
||||
printf("key: 22, value: 22\n");
|
||||
printf("key: 8, value: 8\n");
|
||||
printf("key: 11, value: 11\n");
|
||||
printf("key: 26, value: 26\n");
|
||||
printf("key: 2, value: 2\n");
|
||||
printf("key: 6, value: 6\n");
|
||||
printf("key: 13, value: 13\n");
|
||||
printf("key: 20, value: 20\n");
|
||||
printf("key: 27, value: 27\n");
|
||||
printf("key: 1, value: 1\n");
|
||||
printf("key: 12, value: 12\n");
|
||||
printf("key: 14, value: 14\n");
|
||||
printf("key: 25, value: 25\n");
|
||||
int values[] = {7, 3, 18, 10, 22, 8, 11, 26, 2, 6, 13, 20, 27, 1, 12, 14, 25};
|
||||
|
||||
for (int i = 0; i < sizeof(values) / sizeof(values[0]); i++)
|
||||
insertNode(&root, values[i], values[i]);
|
||||
|
||||
printf("插入创建完毕后中序遍历红黑树结果：\n");
|
||||
inorderTraversal(root);
|
||||
printf("\n");
|
||||
|
||||
printf("查找key值为 10 的结点\n");
|
||||
struct Node *searchResult = searchNode(root, 10);
|
||||
if (searchResult != NULL)
|
||||
printf("找到了key值为 %d 的结点, value值为 %d \n", searchResult->key, searchResult->value);
|
||||
else
|
||||
printf("未找到key值为 %d 的结点\n", 10);
|
||||
|
||||
printf("查找key值为 100 的结点\n");
|
||||
searchResult = searchNode(root, 100);
|
||||
if (searchResult != NULL)
|
||||
printf("找到了key值为 %d 的结点, value值为 %d \n", searchResult->key, searchResult->value);
|
||||
else
|
||||
printf("未找到key值为 %d 的结点\n", 100);
|
||||
|
||||
printf("删除结点 10 和 22\n");
|
||||
int deleteData = 10;
|
||||
deleteNode(&root, 10);
|
||||
deleteNode(&root, 22);
|
||||
|
||||
printf("查找key值为 10 的结点\n");
|
||||
searchResult = searchNode(root, 10);
|
||||
if (searchResult != NULL)
|
||||
printf("找到了key值为 %d 的结点, value值为 %d \n", searchResult->key, searchResult->value);
|
||||
else
|
||||
printf("未找到key值为 %d 的结点\n", 10);
|
||||
|
||||
printf("查找key值为 22 的结点\n");
|
||||
searchResult = searchNode(root, 22);
|
||||
if (searchResult != NULL)
|
||||
printf("找到了key值为 %d 的结点, value值为 %d \n", searchResult->key, searchResult->value);
|
||||
else
|
||||
printf("未找到key值为 %d 的结点\n", 22);
|
||||
|
||||
|
||||
printf("删除结点 %d 后的中序遍历结果：\n", deleteData);
|
||||
inorderTraversal(root);
|
||||
printf("\n");
|
||||
printf("清空红黑树并且释放内存\n");
|
||||
clear(root);
|
||||
}
|
||||
```
|
||||
|
||||
首先先插入一些节点，然后进行中序遍历，查看是否符合预期。然后查找其中节点的值，分别是查找到了的情况和不存在的情况。然后从红黑树中删除两个节点，在此查找，不存在，再将删除后的中序遍历结果打印，最后清空红黑树并且释放内存。
|
||||
|
||||
## 4. 运行结果（##需结合运行测试截图按步骤说明##）
|
||||
|
||||

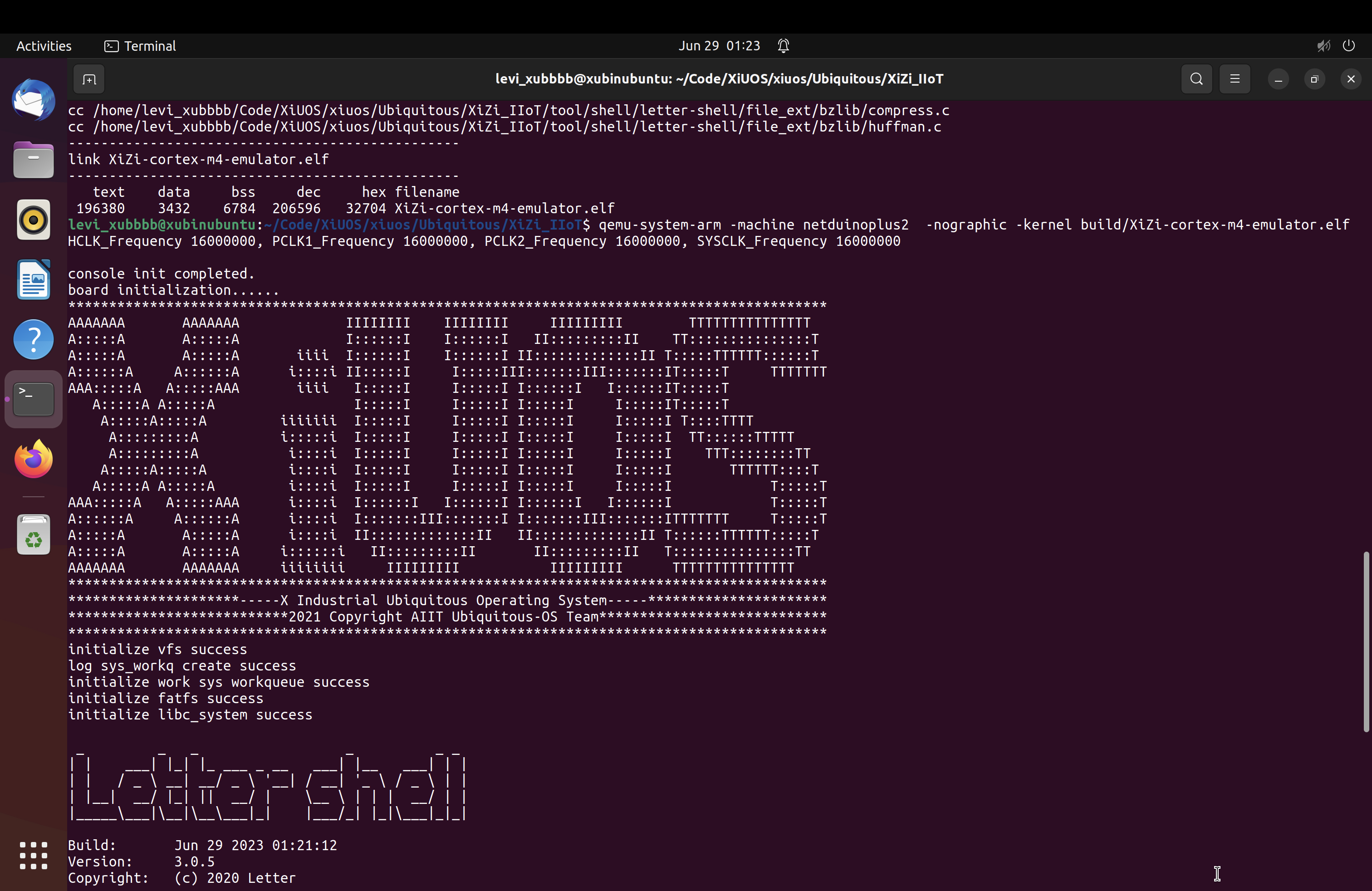

首先启动cortex-m4-emulator
|
||||
|
||||
|
||||
|
||||

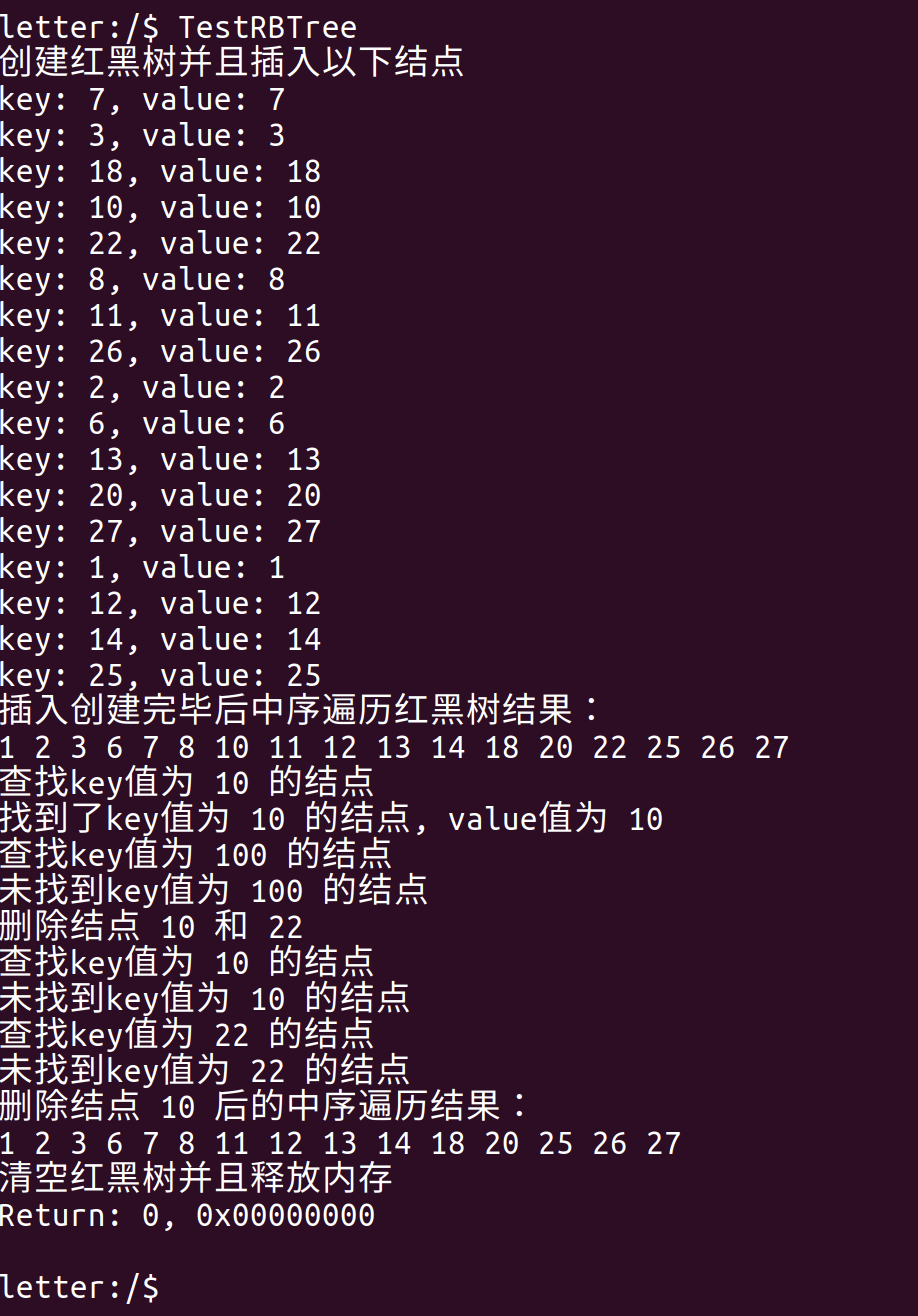

然后运行TestRBTree指令进行测试
|
||||
|
||||
|
||||
|
|
@ -0,0 +1,100 @@
|
|||
/*
|
||||
* Copyright (c) 2020 AIIT XUOS Lab
|
||||
* XiUOS is licensed under Mulan PSL v2.
|
||||
* You can use this software according to the terms and conditions of the Mulan PSL v2.
|
||||
* You may obtain a copy of Mulan PSL v2 at:
|
||||
* http://license.coscl.org.cn/MulanPSL2
|
||||
* THIS SOFTWARE IS PROVIDED ON AN "AS IS" BASIS, WITHOUT WARRANTIES OF ANY KIND,
|
||||
* EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO NON-INFRINGEMENT,
|
||||
* MERCHANTABILITY OR FIT FOR A PARTICULAR PURPOSE.
|
||||
* See the Mulan PSL v2 for more details.
|
||||
*/
|
||||
|
||||
/**
|
||||
* @file: test_rbtree.c
|
||||
* @brief: a application to test red black tree and print result
|
||||
* @version: 1.1
|
||||
* @author: LeviXubbbb(Bin Xu)
|
||||
* @date: 2023/06/28
|
||||
*/
|
||||
|
||||
#include <stdio.h>
|
||||
#include <stdlib.h>
|
||||
#include <string.h>
|
||||
#include <transform.h>
|
||||
#include "test_rbtree.h"
|
||||
#ifdef ADD_XIZI_FETURES
|
||||
|
||||
void TestRBTree(void)
|
||||
{
|
||||
struct Node *root = NULL;
|
||||
printf("创建红黑树并且插入以下结点\n");
|
||||
printf("key: 7, value: 7\n");
|
||||
printf("key: 3, value: 3\n");
|
||||
printf("key: 18, value: 18\n");
|
||||
printf("key: 10, value: 10\n");
|
||||
printf("key: 22, value: 22\n");
|
||||
printf("key: 8, value: 8\n");
|
||||
printf("key: 11, value: 11\n");
|
||||
printf("key: 26, value: 26\n");
|
||||
printf("key: 2, value: 2\n");
|
||||
printf("key: 6, value: 6\n");
|
||||
printf("key: 13, value: 13\n");
|
||||
printf("key: 20, value: 20\n");
|
||||
printf("key: 27, value: 27\n");
|
||||
printf("key: 1, value: 1\n");
|
||||
printf("key: 12, value: 12\n");
|
||||
printf("key: 14, value: 14\n");
|
||||
printf("key: 25, value: 25\n");
|
||||
int values[] = {7, 3, 18, 10, 22, 8, 11, 26, 2, 6, 13, 20, 27, 1, 12, 14, 25};
|
||||
|
||||
for (int i = 0; i < sizeof(values) / sizeof(values[0]); i++)
|
||||
insertNode(&root, values[i], values[i]);
|
||||
|
||||
printf("插入创建完毕后中序遍历红黑树结果：\n");
|
||||
inorderTraversal(root);
|
||||
printf("\n");
|
||||
|
||||
printf("查找key值为 10 的结点\n");
|
||||
struct Node *searchResult = searchNode(root, 10);
|
||||
if (searchResult != NULL)
|
||||
printf("找到了key值为 %d 的结点, value值为 %d \n", searchResult->key, searchResult->value);
|
||||
else
|
||||
printf("未找到key值为 %d 的结点\n", 10);
|
||||
|
||||
printf("查找key值为 100 的结点\n");
|
||||
searchResult = searchNode(root, 100);
|
||||
if (searchResult != NULL)
|
||||
printf("找到了key值为 %d 的结点, value值为 %d \n", searchResult->key, searchResult->value);
|
||||
else
|
||||
printf("未找到key值为 %d 的结点\n", 100);
|
||||
|
||||
printf("删除结点 10 和 22\n");
|
||||
int deleteData = 10;
|
||||
deleteNode(&root, 10);
|
||||
deleteNode(&root, 22);
|
||||
|
||||
printf("查找key值为 10 的结点\n");
|
||||
searchResult = searchNode(root, 10);
|
||||
if (searchResult != NULL)
|
||||
printf("找到了key值为 %d 的结点, value值为 %d \n", searchResult->key, searchResult->value);
|
||||
else
|
||||
printf("未找到key值为 %d 的结点\n", 10);
|
||||
|
||||
printf("查找key值为 22 的结点\n");
|
||||
searchResult = searchNode(root, 22);
|
||||
if (searchResult != NULL)
|
||||
printf("找到了key值为 %d 的结点, value值为 %d \n", searchResult->key, searchResult->value);
|
||||
else
|
||||
printf("未找到key值为 %d 的结点\n", 22);
|
||||
|
||||
|
||||
printf("删除结点 %d 后的中序遍历结果：\n", deleteData);
|
||||
inorderTraversal(root);
|
||||
printf("\n");
|
||||
printf("清空红黑树并且释放内存\n");
|
||||
clear(root);
|
||||
}
|
||||
|
||||
PRIV_SHELL_CMD_FUNCTION(TestRBTree, a red black tree test sample, PRIV_SHELL_CMD_MAIN_ATTR);
|
||||
#endif
|
||||
|
|
@ -0,0 +1,331 @@
|
|||
/*
|
||||
* Copyright (c) 2020 AIIT XUOS Lab
|
||||
* XiUOS is licensed under Mulan PSL v2.
|
||||
* You can use this software according to the terms and conditions of the Mulan PSL v2.
|
||||
* You may obtain a copy of Mulan PSL v2 at:
|
||||
* http://license.coscl.org.cn/MulanPSL2
|
||||
* THIS SOFTWARE IS PROVIDED ON AN "AS IS" BASIS, WITHOUT WARRANTIES OF ANY KIND,
|
||||
* EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO NON-INFRINGEMENT,
|
||||
* MERCHANTABILITY OR FIT FOR A PARTICULAR PURPOSE.
|
||||
* See the Mulan PSL v2 for more details.
|
||||
*/
|
||||
|
||||
/**
|
||||
* @file: test_rbtree.h
|
||||
* @brief: a header file to implement red black tree
|
||||
* @version: 1.1
|
||||
* @author: LeviXubbbb(Bin Xu)
|
||||
* @date: 2023/06/28
|
||||
*/
|
||||
|
||||
#ifndef XIUOS_TEST_RBTREE_H
|
||||
#define XIUOS_TEST_RBTREE_H
|
||||
|
||||
#include <stdio.h>
|
||||
#include <stdlib.h>
|
||||
#include <string.h>
|
||||
|
||||
// define color of red-black tree
|
||||
enum Color {RED, BLACK};
|
||||
|
||||
// define a node of red-black tree
|
||||
struct Node {
|
||||
int key;
|
||||
int value;
|
||||
enum Color color;
|
||||
struct Node *left, *right, *parent;
|
||||
};
|
||||
|
||||
// create a new nodes
|
||||
struct Node *createNode(int key, int value) {
|
||||
struct Node *newNode = (struct Node*)malloc(sizeof(struct Node));
|
||||
newNode->key = key;
|
||||
newNode->value = value;
|
||||
newNode->color = RED;
|
||||
newNode->left = newNode->right = newNode->parent = NULL;
|
||||
return newNode;
|
||||
}
|
||||
|
||||
// red-black tree left rotation
|
||||
void leftRotate(struct Node **root, struct Node *x) {
|
||||
struct Node *y = x->right;
|
||||
x->right = y->left;
|
||||
if (y->left != NULL)
|
||||
y->left->parent = x;
|
||||
y->parent = x->parent;
|
||||
if (x->parent == NULL)
|
||||
*root = y;
|
||||
else if (x == x->parent->left)
|
||||
x->parent->left = y;
|
||||
else
|
||||
x->parent->right = y;
|
||||
y->left = x;
|
||||
x->parent = y;
|
||||
}
|
||||
|
||||
// red-black tree right rotation
|
||||
void rightRotate(struct Node **root, struct Node *y) {
|
||||
struct Node *x = y->left;
|
||||
y->left = x->right;
|
||||
if (x->right != NULL)
|
||||
x->right->parent = y;
|
||||
x->parent = y->parent;
|
||||
if (y->parent == NULL)
|
||||
*root = x;
|
||||
else if (y == y->parent->left)
|
||||
y->parent->left = x;
|
||||
else
|
||||
y->parent->right = x;
|
||||
x->right = y;
|
||||
y->parent = x;
|
||||
}
|
||||
|
||||
// red-black tree fix-up
|
||||
void fixViolation(struct Node **root, struct Node *newNode) {
|
||||
struct Node *parent = NULL;
|
||||
struct Node *grandparent = NULL;
|
||||
|
||||
while ((newNode != *root) && (newNode->color != BLACK) && (newNode->parent->color == RED)) {
|
||||
parent = newNode->parent;
|
||||
grandparent = newNode->parent->parent;
|
||||
|
||||
if (parent == grandparent->left) {
|
||||
struct Node *uncle = grandparent->right;
|
||||
|
||||
if (uncle != NULL && uncle->color == RED) {
|
||||
grandparent->color = RED;
|
||||
parent->color = BLACK;
|
||||
uncle->color = BLACK;
|
||||
newNode = grandparent;
|
||||
} else {
|
||||
if (newNode == parent->right) {
|
||||
leftRotate(root, parent);
|
||||
newNode = parent;
|
||||
parent = newNode->parent;
|
||||
}
|
||||
|
||||
rightRotate(root, grandparent);
|
||||
int temp = parent->color;
|
||||
parent->color = grandparent->color;
|
||||
grandparent->color = temp;
|
||||
newNode = parent;
|
||||
}
|
||||
} else {
|
||||
struct Node *uncle = grandparent->left;
|
||||
|
||||
if ((uncle != NULL) && (uncle->color == RED)) {
|
||||
grandparent->color = RED;
|
||||
parent->color = BLACK;
|
||||
uncle->color = BLACK;
|
||||
newNode = grandparent;
|
||||
} else {
|
||||
if (newNode == parent->left) {
|
||||
rightRotate(root, parent);
|
||||
newNode = parent;
|
||||
parent = newNode->parent;
|
||||
}
|
||||
|
||||
leftRotate(root, grandparent);
|
||||
int temp = parent->color;
|
||||
parent->color = grandparent->color;
|
||||
grandparent->color = temp;
|
||||
newNode = parent;
|
||||
}
|
||||
}
|
||||
}
|
||||
|
||||
(*root)->color = BLACK;
|
||||
}
|
||||
|
||||
// insert a node into red-black tree
|
||||
void insertNode(struct Node **root, int key, int value) {
|
||||
struct Node *newNode = createNode(key, value);
|
||||
struct Node *current = *root;
|
||||
struct Node *parent = NULL;
|
||||
|
||||
while (current != NULL) {
|
||||
parent = current;
|
||||
if (key < current->key)
|
||||
current = current->left;
|
||||
else
|
||||
current = current->right;
|
||||
}
|
||||
|
||||
newNode->parent = parent;
|
||||
if (parent == NULL)
|
||||
*root = newNode;
|
||||
else if (key < parent->key)
|
||||
parent->left = newNode;
|
||||
else
|
||||
parent->right = newNode;
|
||||
|
||||
fixViolation(root, newNode);
|
||||
}
|
||||
|
||||
// search a node in red-black tree
|
||||
struct Node *searchNode(struct Node *root, int key) {
|
||||
if (root == NULL || root->key == key)
|
||||
return root;
|
||||
|
||||
if (root->key < key)
|
||||
return searchNode(root->right, key);
|
||||
|
||||
return searchNode(root->left, key);
|
||||
}
|
||||
|
||||
// find the minimum node in red-black tree
|
||||
struct Node *minimumNode(struct Node *node) {
|
||||
while (node->left != NULL)
|
||||
node = node->left;
|
||||
|
||||
return node;
|
||||
}
|
||||
|
||||
// replace a node with another node
|
||||
void transplant(struct Node **root, struct Node *u, struct Node *v) {
|
||||
if (u->parent == NULL)
|
||||
*root = v;
|
||||
else if (u == u->parent->left)
|
||||
u->parent->left = v;
|
||||
else
|
||||
u->parent->right = v;
|
||||
|
||||
if (v != NULL)
|
||||
v->parent = u->parent;
|
||||
}
|
||||
|
||||
// fix the delete violation in red-black tree
|
||||
void fixDeleteViolation(struct Node **root, struct Node *node, struct Node *parent) {
|
||||
struct Node *sibling = NULL;
|
||||
|
||||
while ((node != *root) && ((node == NULL) || (node->color == BLACK))) {
|
||||
if (node == parent->left) {
|
||||
sibling = parent->right;
|
||||
|
||||
if (sibling->color == RED) {
|
||||
sibling->color = BLACK;
|
||||
parent->color = RED;
|
||||
leftRotate(root, parent);
|
||||
sibling = parent->right;
|
||||
}
|
||||
|
||||
if ((sibling->left == NULL || sibling->left->color == BLACK) &&
|
||||
(sibling->right == NULL || sibling->right->color == BLACK)) {
|
||||
sibling->color = RED;
|
||||
node = parent;
|
||||
parent = node->parent;
|
||||
} else {
|
||||
if (sibling->right == NULL || sibling->right->color == BLACK) {
|
||||
sibling->left->color = BLACK;
|
||||
sibling->color = RED;
|
||||
rightRotate(root, sibling);
|
||||
sibling = parent->right;
|
||||
}
|
||||
|
||||
sibling->color = parent->color;
|
||||
parent->color = BLACK;
|
||||
sibling->right->color = BLACK;
|
||||
leftRotate(root, parent);
|
||||
node = *root;
|
||||
break;
|
||||
}
|
||||
} else {
|
||||
sibling = parent->left;
|
||||
|
||||
if (sibling->color == RED) {
|
||||
sibling->color = BLACK;
|
||||
parent->color = RED;
|
||||
rightRotate(root, parent);
|
||||
sibling = parent->left;
|
||||
}
|
||||
|
||||
if ((sibling->left == NULL || sibling->left->color == BLACK) &&
|
||||
(sibling->right == NULL || sibling->right->color == BLACK)) {
|
||||
sibling->color = RED;
|
||||
node = parent;
|
||||
parent = node->parent;
|
||||
} else {
|
||||
if (sibling->left == NULL || sibling->left->color == BLACK) {
|
||||
sibling->right->color = BLACK;
|
||||
sibling->color = RED;
|
||||
leftRotate(root, sibling);
|
||||
sibling = parent->left;
|
||||
}
|
||||
|
||||
sibling->color = parent->color;
|
||||
parent->color = BLACK;
|
||||
sibling->left->color = BLACK;
|
||||
rightRotate(root, parent);
|
||||
node = *root;
|
||||
break;
|
||||
}
|
||||
}
|
||||
}
|
||||
|
||||
if (node != NULL)
|
||||
node->color = BLACK;
|
||||
}
|
||||
|
||||
|
||||
// delete a node from red-black tree
|
||||
void deleteNode(struct Node **root, int key) {
|
||||
struct Node *nodeToDelete = searchNode(*root, key);
|
||||
if (nodeToDelete == NULL)
|
||||
return;
|
||||
|
||||
struct Node *child = NULL;
|
||||
struct Node *parent = NULL;
|
||||
enum Color originalColor = nodeToDelete->color;
|
||||
|
||||
if (nodeToDelete->left == NULL) {
|
||||
child = nodeToDelete->right;
|
||||
parent = nodeToDelete->parent;
|
||||
transplant(root, nodeToDelete, nodeToDelete->right);
|
||||
} else if (nodeToDelete->right == NULL) {
|
||||
child = nodeToDelete->left;
|
||||
parent = nodeToDelete->parent;
|
||||
transplant(root, nodeToDelete, nodeToDelete->left);
|
||||
} else {
|
||||
struct Node *successor = minimumNode(nodeToDelete->right);
|
||||
originalColor = successor->color;
|
||||
child = successor->right;
|
||||
parent = successor->parent;
|
||||
|
||||
if (successor->parent == nodeToDelete)
|
||||
parent = successor;
|
||||
else {
|
||||
transplant(root, successor, successor->right);
|
||||
successor->right = nodeToDelete->right;
|
||||
successor->right->parent = successor;
|
||||
}
|
||||
|
||||
transplant(root, nodeToDelete, successor);
|
||||
successor->left = nodeToDelete->left;
|
||||
successor->left->parent = successor;
|
||||
successor->color = nodeToDelete->color;
|
||||
}
|
||||
|
||||
if (originalColor == BLACK)
|
||||
fixDeleteViolation(root, child, parent);
|
||||
free(nodeToDelete);
|
||||
}
|
||||
|
||||
// inorder traversal
|
||||
void inorderTraversal(struct Node *root) {
|
||||
if (root != NULL) {
|
||||
inorderTraversal(root->left);
|
||||
printf("%d ", root->key);
|
||||
inorderTraversal(root->right);
|
||||
}
|
||||
}
|
||||
|
||||
//clear the tree
|
||||
void clear(struct Node *root) {
|
||||
if (root != NULL) {
|
||||
clear(root->left);
|
||||
clear(root->right);
|
||||
free(root);
|
||||
}
|
||||
}
|
||||
|
||||
#endif //XIUOS_TEST_RBTREE_H
|
||||
|
|
@ -7,7 +7,7 @@ export APPLFLAGS := -mcmodel=medany -march=rv64imac -mabi=lp64 -nostartfiles -Wl
|
|||
|
||||
export CXXFLAGS := -mcmodel=medany -march=rv64imac -mabi=lp64 -fno-common -ffunction-sections -fdata-sections -fstrict-volatile-bitfields -O0 -Wa,-g -ggdb -Werror
|
||||
|
||||
export CROSS_COMPILE ?=/opt/gnu-mcu-eclipse/riscv-none-gcc/8.2.0-2.1-20190425-1021/bin/riscv-none-embed-
|
||||
export CROSS_COMPILE ?=/opt/xpack-riscv-none-embed-gcc-8.3.0-1.2/bin/riscv-none-embed-
|
||||
|
||||
export DEFINES := -DHAVE_CCONFIG_H -DHAVE_SIGINFO
|
||||
|
||||
|
|
|
|||
Loading…
Reference in New Issue
