2023_open_source_contest_warmup_1st_issue3 finish

This commit is contained in:
LeviXubbbb 2023-07-27 16:03:53 +08:00
parent 36584b95ce
commit 7d8fffd0b3
5 changed files with 227 additions and 1 deletions
Show Stats Download Patch File Download Diff File Expand all files Collapse all files

4
APP_Framework/Applications/app_test/Kconfig
View File

@ -247,6 +247,8 @@ menu "test app"
menuconfig USER_TEST_RBTREE
bool "Config test rbtree"
default n
menuconfig USER_TEST_RADIX_TREE
bool "Config test radix tree"
default n
endif
endmenu

4
APP_Framework/Applications/app_test/Makefile
View File

@ -109,5 +109,9 @@ ifeq ($(CONFIG_ADD_XIZI_FETURES),y)
SRC_FILES += test_rbtree/test_rbtree.c
endif
ifeq ($(CONFIG_USER_TEST_RADIX_TREE),y)
SRC_FILES += test_radix_tree/test_radix_tree.c
endif
include $(KERNEL_ROOT)/compiler.mk
endif

67
APP_Framework/Applications/app_test/test_radix_tree/README.md Normal file
View File

@ -0,0 +1,67 @@
# **基于k210-emulator实现基数树并测试验证**
## 1. 简介
基于矽璓模拟器k210-emulator，实现基数树，并编写测试程序在shell终端打印结果
## 2. 数据结构设计说明
```c
struct RadixTreeNode{
char key;
int value;
RadixTreeNode* children[26];
};
```
每个节点存储一个字符串中的一个字母，同时存储他的后一个字符的26种可能情况(在这里仅考虑小写英文字母)
## 3. 测试程序说明
```c
void TestRadixTree(void)
{
RadixTreeNode* root = (RadixTreeNode*)malloc(sizeof(RadixTreeNode));
root->key = 0;
root->value = 0;
for(int i = 0; i < 26; i++)
root->children[i] = NULL;
printf("创建基数树并且插入以下结点\n");
printf("key: apple, value: 1\n");
printf("key: banana, value: 2\n");
printf("key: orange, value: 3\n");
printf("key: pear, value: 4\n");
printf("key: peach, value: 5\n");
printf("key: xiuos, value: 6\n");
RadixTreeInsert(root, "apple", 1);
RadixTreeInsert(root, "banana", 2);
RadixTreeInsert(root, "orange", 3);
RadixTreeInsert(root, "pear", 4);
RadixTreeInsert(root, "peach", 5);
RadixTreeInsert(root, "xiuos", 6);
printf("插入创建完毕后查询基数树结果:\n");
printf("若输入的内容是某些key的前缀则会返回value 0, 若输入的内容完全不匹配则返回value -1, 若输入的内容是某个key则会返回对应的value\n");
printf("Value of key \"apple\" is %d\n", RadixTreeSearch(root, "apple"));
printf("Value of key \"banana\" is %d\n", RadixTreeSearch(root, "banana"));
printf("Value of key \"orange\" is %d\n", RadixTreeSearch(root, "orange"));
printf("Value of key \"pear\" is %d\n", RadixTreeSearch(root, "pear"));
printf("Value of key \"peach\" is %d\n", RadixTreeSearch(root, "peach"));
printf("Value of key \"xiuos\" is %d\n", RadixTreeSearch(root, "xiuos"));
printf("Value of key \"app\" is %d\n", RadixTreeSearch(root, "app"));
printf("Value of key \"xiuoss\" is %d\n", RadixTreeSearch(root, "xiuoss"));
printf("测试结束, 清空基数树\n");
RadixTreeClear(root);
}
```
创建一个基数树并插入一些字符串作为key，以及它的相对应的value值(这里仅考虑value为int)。然后进行查找。若查找的key是某些key的前缀，则返回0，若查找的key不存在且不是某些key的前缀则返回-1.
## 4. 运行结果（##需结合运行测试截图按步骤说明##）
首先启动k210-emulator
![2023_open_source_contest_warmup_1st_issue3_1](https://xubbbb-chartbed.oss-cn-shanghai.aliyuncs.com/img/markdown/2023_open_source_contest_warmup_1st_issue3_1.png)

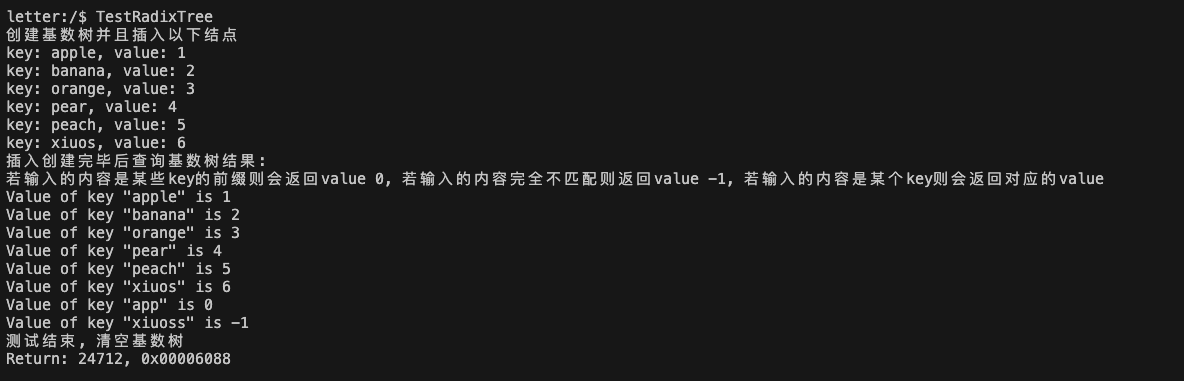

然后运行TestRadixTree指令进行测试
![2023_open_source_contest_warmup_1st_issue3_2](https://xubbbb-chartbed.oss-cn-shanghai.aliyuncs.com/img/markdown/2023_open_source_contest_warmup_1st_issue3_2.png)

63
APP_Framework/Applications/app_test/test_radix_tree/test_radix_tree.c Normal file
View File

@ -0,0 +1,63 @@
/*
* Copyright (c) 2020 AIIT XUOS Lab
* XiUOS is licensed under Mulan PSL v2.
* You can use this software according to the terms and conditions of the Mulan PSL v2.
* You may obtain a copy of Mulan PSL v2 at:
* http://license.coscl.org.cn/MulanPSL2
* THIS SOFTWARE IS PROVIDED ON AN "AS IS" BASIS, WITHOUT WARRANTIES OF ANY KIND,
* EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO NON-INFRINGEMENT,
* MERCHANTABILITY OR FIT FOR A PARTICULAR PURPOSE.
* See the Mulan PSL v2 for more details.
*/
/**
* @file: test_radix_tree.c
* @brief: a application to test radix tree and print result
* @version: 1.1
* @author: LeviXubbbb(Bin Xu)
* @date: 2023/07/26
*/
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <transform.h>
#include "test_radix_tree.h"
#ifdef ADD_XIZI_FETURES
void TestRadixTree(void)
{
RadixTreeNode* root = (RadixTreeNode*)malloc(sizeof(RadixTreeNode));
root->key = 0;
root->value = 0;
for(int i = 0; i < 26; i++)
root->children[i] = NULL;
printf("创建基数树并且插入以下结点\n");
printf("key: apple, value: 1\n");
printf("key: banana, value: 2\n");
printf("key: orange, value: 3\n");
printf("key: pear, value: 4\n");
printf("key: peach, value: 5\n");
printf("key: xiuos, value: 6\n");
RadixTreeInsert(root, "apple", 1);
RadixTreeInsert(root, "banana", 2);
RadixTreeInsert(root, "orange", 3);
RadixTreeInsert(root, "pear", 4);
RadixTreeInsert(root, "peach", 5);
RadixTreeInsert(root, "xiuos", 6);
printf("插入创建完毕后查询基数树结果:\n");
printf("若输入的内容是某些key的前缀则会返回value 0, 若输入的内容完全不匹配则返回value -1, 若输入的内容是某个key则会返回对应的value\n");
printf("Value of key \"apple\" is %d\n", RadixTreeSearch(root, "apple"));
printf("Value of key \"banana\" is %d\n", RadixTreeSearch(root, "banana"));
printf("Value of key \"orange\" is %d\n", RadixTreeSearch(root, "orange"));
printf("Value of key \"pear\" is %d\n", RadixTreeSearch(root, "pear"));
printf("Value of key \"peach\" is %d\n", RadixTreeSearch(root, "peach"));
printf("Value of key \"xiuos\" is %d\n", RadixTreeSearch(root, "xiuos"));
printf("Value of key \"app\" is %d\n", RadixTreeSearch(root, "app"));
printf("Value of key \"xiuoss\" is %d\n", RadixTreeSearch(root, "xiuoss"));
printf("测试结束, 清空基数树\n");
RadixTreeClear(root);
}
PRIV_SHELL_CMD_FUNCTION(TestRadixTree, a radix tree test sample, PRIV_SHELL_CMD_MAIN_ATTR);
#endif

90
APP_Framework/Applications/app_test/test_radix_tree/test_radix_tree.h Normal file
View File

@ -0,0 +1,90 @@
/*
* Copyright (c) 2020 AIIT XUOS Lab
* XiUOS is licensed under Mulan PSL v2.
* You can use this software according to the terms and conditions of the Mulan PSL v2.
* You may obtain a copy of Mulan PSL v2 at:
* http://license.coscl.org.cn/MulanPSL2
* THIS SOFTWARE IS PROVIDED ON AN "AS IS" BASIS, WITHOUT WARRANTIES OF ANY KIND,
* EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO NON-INFRINGEMENT,
* MERCHANTABILITY OR FIT FOR A PARTICULAR PURPOSE.
* See the Mulan PSL v2 for more details.
*/
/**
* @file: test_radix_tree.h
* @brief: a header file to implement radix tree
* @version: 1.1
* @author: LeviXubbbb(Bin Xu)
* @date: 2023/07/26
*/
#ifndef XIUOS_TEST_RADIX_TREE_H
#define XIUOS_TEST_RADIX_TREE_H
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
typedef struct RadixTreeNode RadixTreeNode;
struct RadixTreeNode{
char key;
int value;
RadixTreeNode* children[26];
};
static RadixTreeNode* createNode(char key, int value){
RadixTreeNode* node = (RadixTreeNode*)malloc(sizeof(RadixTreeNode));
node->key = key;
node->value = value;
for(int i = 0; i < 26; i++){
node->children[i] = NULL;
}
return node;
}
void RadixTreeInsert(RadixTreeNode* root, char* key, int value){
RadixTreeNode* node = root;
int len = strlen(key);
for(int i = 0; i < len; i++){
int index = key[i] - 'a';
if(index < 0 || index > 25){
printf("Invalid key! Please use lowercase letters!\n");
return;
}
if(node->children[index] == NULL){
node->children[index] = createNode(key[i], 0);
}
node = node->children[index];
}
node->value = value;
}
int RadixTreeSearch(RadixTreeNode* root, char* key){
RadixTreeNode* node = root;
int len = strlen(key);
for(int i = 0; i < len; i++){
int index = key[i] - 'a';
if(index < 0 || index > 25){
printf("Invalid key! Please use lowercase letters!\n");
return -1;
}
if(node->children[index] == NULL){
return -1;
}
node = node->children[index];
}
return node->value;
}
void RadixTreeClear(RadixTreeNode* root){
if(root == NULL){
return;
}
for(int i = 0; i < 26; i++){
RadixTreeClear(root->children[i]);
}
free(root);
}
#endif //XIUOS_TEST_RADIX_TREE_H
