2023_open_source_contest_warmup_1st_issue1 finish

This commit is contained in:
Levi_Xubbbb 2023-06-28 02:05:09 +00:00
parent 9339da056b
commit 587d39793c
5 changed files with 275 additions and 0 deletions
Show Stats Download Patch File Download Diff File Expand all files Collapse all files

4
APP_Framework/Applications/app_test/Kconfig
View File

@ -239,6 +239,10 @@ menu "test app"
menuconfig USER_TEST_TIMER
bool "Config test soft timer"
default n
menuconfig USER_TEST_HASH
bool "Config test hash"
default n
endif
endmenu

4
APP_Framework/Applications/app_test/Makefile
View File

@ -101,5 +101,9 @@ ifeq ($(CONFIG_ADD_XIZI_FETURES),y)
SRC_FILES += test_timer.c
endif
ifeq ($(CONFIG_USER_TEST_HASH),y)
SRC_FILES += test_hash/test_hash.c
endif
include $(KERNEL_ROOT)/compiler.mk
endif

79
APP_Framework/Applications/app_test/test_hash/README.md Normal file
View File

@ -0,0 +1,79 @@
# 基于cortex-m3-emulator实现哈希表并测试验证
## 1. 简介
基于cortex-m3-emulator实现链式哈希表，并设计了几个小数据集测试其功能
## 2. 数据结构设计说明
```c
typedef struct Node{
int key;
int value;
struct Node *next;
} Node;
typedef struct HashTable{
Node *table[TABLE_SIZE];
} HashTable;
```
每一个节点都是一个Node, 分别存储键值对，以及相同哈希值的下一个节点。
HashTable为一个Node指针数组，存储每个Hash值的链表的首地址。
## 3. 测试程序说明
```c
void TestHash(void)
{
HashTable table;
Init(&table);
printf("Test Hash Table\n");
printf("Insert 1, 10\n");
Insert(&table, 1, 10);
printf("Insert 2, 20\n");
Insert(&table, 2, 20);
printf("Insert 3, 30\n");
Insert(&table, 3, 30);
printf("Insert 101, 40\n");
Insert(&table, 101, 40);
printf("Insert 102, 50\n");
Insert(&table, 102, 50);
printf("Insert 103, 60\n");
Insert(&table, 103, 60);
printf("Insert 104, 70\n");
Insert(&table, 104, 70);
printf("Search 1, result: %d\n", Search(&table, 1));
printf("Search 2, result: %d\n", Search(&table, 2));
printf("Search 3, result: %d\n", Search(&table, 3));
printf("Search 4, result: %d\n", Search(&table, 4));
printf("Search 101, result: %d\n", Search(&table, 101));
printf("Search 102, result: %d\n", Search(&table, 102));
printf("Search 103, result: %d\n", Search(&table, 103));
printf("Search 104, result: %d\n", Search(&table, 104));
printf("Delete 1\n");
Delete(&table, 1);
printf("Search 1, result: %d\n", Search(&table, 1));
printf("Clear Table\n");
Clear(&table);
return;
}
```
首先利用Init函数初始化HashTable，然后插入一系列值，对于101同余的Key具有相同的哈希值，会被放入同一个bucket当中。随后查找几个值，都符合预期(如果查找不到则返回值为-1，此处认为用户应该不会存储负数的value，若会存储负数的value，可将不存在的标记修改一下)。然后删除一个节点重新查找，应当查找不到，最后释放哈希表的空间。
## 4. 运行结果（##需结合运行测试截图按步骤说明##）

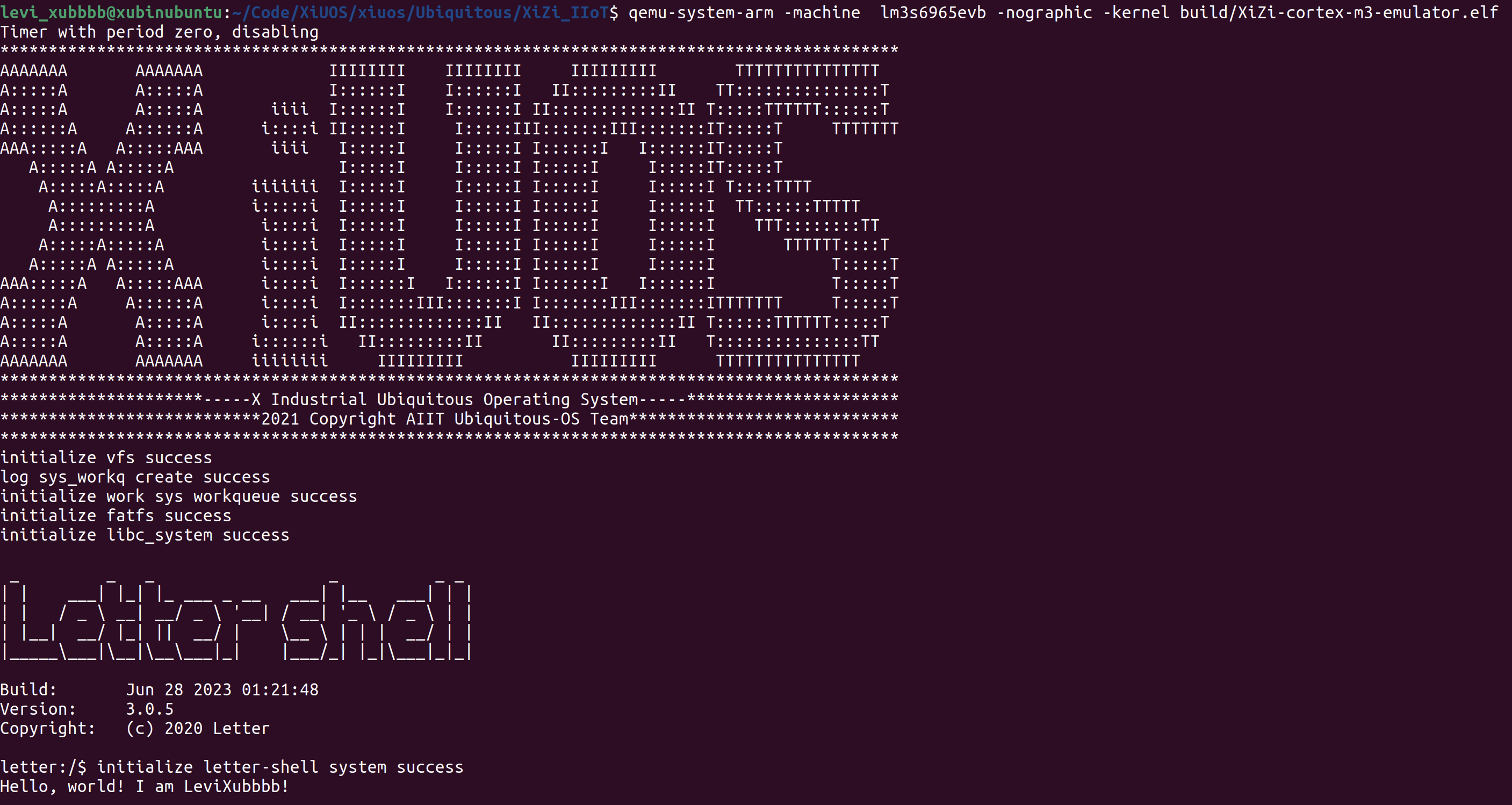

首先启动机器
![2023_open_source_contest_warmup_1st_issue1_1](https://xubbbb-chartbed.oss-cn-shanghai.aliyuncs.com/img/markdown/2023_open_source_contest_warmup_1st_issue1_1.png)

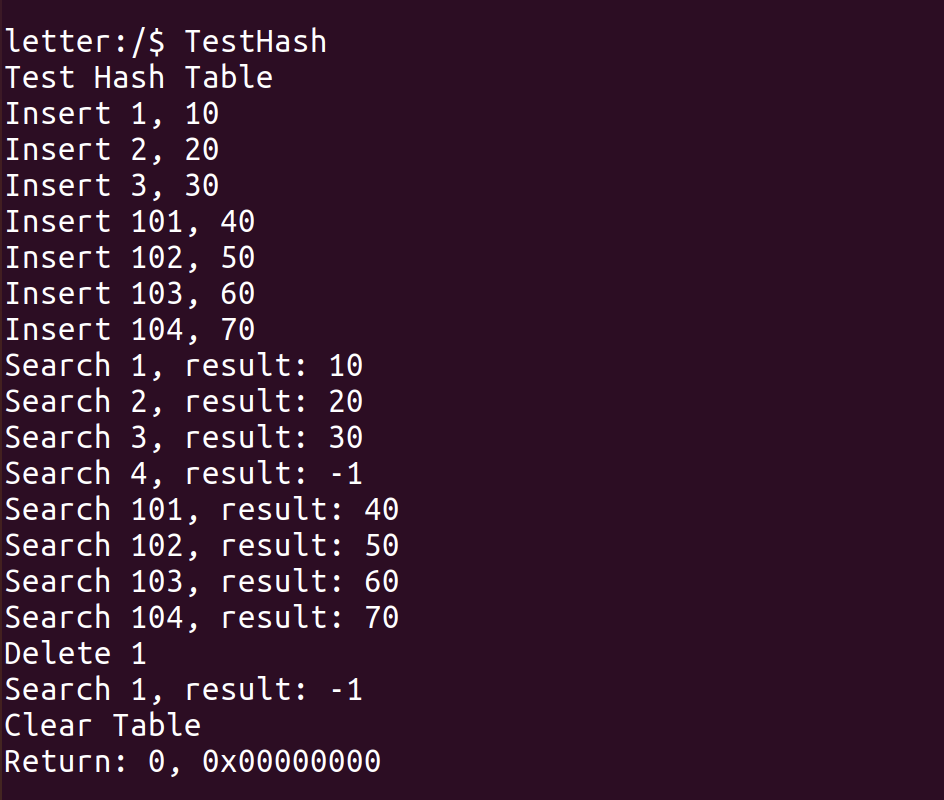

运行TestHash命令
![2023_open_source_contest_warmup_1st_issue1_2](https://xubbbb-chartbed.oss-cn-shanghai.aliyuncs.com/img/markdown/2023_open_source_contest_warmup_1st_issue1_2.png)

72
APP_Framework/Applications/app_test/test_hash/test_hash.c Normal file
View File

@ -0,0 +1,72 @@
/*
* Copyright (c) 2020 AIIT XUOS Lab
* XiUOS is licensed under Mulan PSL v2.
* You can use this software according to the terms and conditions of the Mulan PSL v2.
* You may obtain a copy of Mulan PSL v2 at:
* http://license.coscl.org.cn/MulanPSL2
* THIS SOFTWARE IS PROVIDED ON AN "AS IS" BASIS, WITHOUT WARRANTIES OF ANY KIND,
* EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO NON-INFRINGEMENT,
* MERCHANTABILITY OR FIT FOR A PARTICULAR PURPOSE.
* See the Mulan PSL v2 for more details.
*/
/**
* @file: test_hash.c
* @brief: a application to test hash table and print result
* @version: 1.1
* @author: LeviXubbbb(Bin Xu)
* @date: 2023/06/22
*/
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <transform.h>
#include "test_hash.h"
#ifdef ADD_XIZI_FETURES
void TestHash(void)
{
HashTable table;
printf("Init Hash Table\n");
Init(&table);
printf("Test Hash Table\n");
printf("Insert 1, 10\n");
Insert(&table, 1, 10);
printf("Insert 2, 20\n");
Insert(&table, 2, 20);
printf("Insert 3, 30\n");
Insert(&table, 3, 30);
printf("Insert 101, 40\n");
Insert(&table, 101, 40);
printf("Insert 102, 50\n");
Insert(&table, 102, 50);
printf("Insert 103, 60\n");
Insert(&table, 103, 60);
printf("Insert 104, 70\n");
Insert(&table, 104, 70);
printf("Search 1, result: %d\n", Search(&table, 1));
printf("Search 2, result: %d\n", Search(&table, 2));
printf("Search 3, result: %d\n", Search(&table, 3));
printf("Search 4, result: %d\n", Search(&table, 4));
printf("Search 101, result: %d\n", Search(&table, 101));
printf("Search 102, result: %d\n", Search(&table, 102));
printf("Search 103, result: %d\n", Search(&table, 103));
printf("Search 104, result: %d\n", Search(&table, 104));
printf("Delete 1\n");
Delete(&table, 1);
printf("Search 1, result: %d\n", Search(&table, 1));
printf("Clear Table\n");
Clear(&table);
return;
}
PRIV_SHELL_CMD_FUNCTION(TestHash, a hash table test sample, PRIV_SHELL_CMD_MAIN_ATTR);
#endif

116
APP_Framework/Applications/app_test/test_hash/test_hash.h Normal file
View File

@ -0,0 +1,116 @@
#ifndef XIUOS_TEST_HASH_H
#define XIUOS_TEST_HASH_H
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#define TABLE_SIZE 101
typedef struct Node{
int key;
int value;
struct Node *next;
} Node;
typedef struct HashTable{
Node *table[TABLE_SIZE];
} HashTable;
unsigned int Hash(int key)
{
return key % TABLE_SIZE;
}
Node* CreateNode(int key, int value)
{
Node *new_node = (Node*)malloc(sizeof(Node));
new_node->key = key;
new_node->value = value;
new_node->next = NULL;
return new_node;
}
void Init(HashTable *hash_table)
{
int i;
for(i = 0; i < TABLE_SIZE; i++)
hash_table->table[i] = NULL;
}
void Insert(HashTable *hash_table, int key, int value)
{
unsigned int hash_value = Hash(key);
Node *node = hash_table->table[hash_value];
while(node != NULL && node->key != key)
node = node->next;
if(node != NULL){
node->value = value;
return;
}
Node *new_node = CreateNode(key, value);
new_node->next = hash_table->table[hash_value];
hash_table->table[hash_value] = new_node;
}
int Search(HashTable *hash_table, int key)
{
unsigned int hash_value = Hash(key);
Node *node = hash_table->table[hash_value];
while(node != NULL && node->key != key)
node = node->next;
if(node == NULL)
return -1;
else
return node->value;
}
void Delete(HashTable *hash_table, int key)
{
unsigned int hash_value = Hash(key);
Node *node = hash_table->table[hash_value];
Node *prev_node = NULL;
while(node != NULL && node->key != key){
prev_node = node;
node = node->next;
}
if(node == NULL)
return;
if(prev_node == NULL)
hash_table->table[hash_value] = node->next;
else
prev_node->next = node->next;
free(node);
}
void Clear(HashTable *hash_table)
{
int i;
for(i = 0; i < TABLE_SIZE; i++){
Node *node = hash_table->table[i];
while(node != NULL){
Node *temp = node;
node = node->next;
free(temp);
}
hash_table->table[i] = NULL;
}
}
void PrintTable(HashTable *hash_table)
{
int i;
for(i = 0; i < TABLE_SIZE; i++){
printf("Print %d\n", i);
Node *node = hash_table->table[i];
while(node != NULL){
printf("key: %d, value: %d\n", node->key, node->value);
node = node->next;
}
}
}
#endif //XIUOS_TEST_HASH_H
