98da8bbdfb
1. vfs重构优化，统一fs模块的对外接口，减少不必要的冗余调用，由fs组件直接提供posix对外接口
2. vfs与libc关系整理
3. fs接口实现规范化
BREAKING CHANGE:
删除API:
int LOS_Open(const char *path, int flags, ...);
int LOS_Close(int fd);
ssize_t LOS_Read(int fd, void *buff, size_t bytes);
ssize_t LOS_Write(int fd, const void *buff, size_t bytes);
off_t LOS_Lseek(int fd, off_t off, int whence);
int LOS_Stat(const char *path, struct stat *stat);
int LOS_Statfs(const char *path, struct statfs *buf);
int LOS_Unlink(const char *path);
int LOS_Rename(const char *oldpath, const char *newpath);
int LOS_Fsync(int fd);
DIR *LOS_Opendir(const char *path);
struct dirent *LOS_Readdir(DIR *dir);
int LOS_Closedir(DIR *dir);
int LOS_Mkdir(const char *path, mode_t mode);
int LOS_Rmdir(const char *path);
int LOS_Lstat(const char *path, struct stat *buffer);
int LOS_Fstat(int fd, struct stat *buf);
int LOS_Fcntl(int fd, int cmd, ...);
int LOS_Ioctl(int fd, int req, ...);
ssize_t LOS_Readv(int fd, const struct iovec *iovBuf, int iovcnt);
ssize_t LOS_Writev(int fd, const struct iovec *iovBuf, int iovcnt);
ssize_t LOS_Pread(int fd, void *buff, size_t bytes, off_t off);
ssize_t LOS_Pwrite(int fd, const void *buff, size_t bytes, off_t off);
int LOS_Isatty(int fd);
int LOS_Access(const char *path, int amode);
int LOS_Ftruncate(int fd, off_t length);
int LOS_FsUmount(const char *target);
int LOS_FsUmount2(const char *target, int flag);
int LOS_FsMount(const char *source, const char *target,
const char *fsType, unsigned long mountflags,
const void *data);
int OsFcntl(int fd, int cmd, va_list ap);
int OsIoctl(int fd, int req, va_list ap);
Close #I65MNQ
Signed-off-by: arvinzzz <zhaotianyu9@huawei.com>
Change-Id: I3d16852ffb87ab061c22b22f5873eba384842101
|
||
|---|---|---|
| .gitee | ||
| arch | ||
| components | ||
| drivers | ||
| figures | ||
| kal | ||
| kernel | ||
| testsuites | ||
| tools | ||
| utils | ||
| .gitignore | ||
| BUILD.gn | ||
| CHANGELOG.md | ||
| Kconfig | ||
| LICENSE | ||
| Makefile | ||
| NOTICE | ||
| OAT.xml | ||
| README.md | ||
| README_zh.md | ||
| arch_spec.md | ||
| arch_spec_zh.md | ||
| bundle.json | ||
| config.gni | ||
| config_iccarm.gni | ||
| liteos.gni | ||
README.md
LiteOS-M Kernel
Introduction
OpenHarmony LiteOS-M is a lightweight operating system kernel designed for the Internet of Things (IoT) field. It features small footprint, low power consumption, and high performance. It has a simple code structure, including the minimum kernel function set, kernel abstraction layer, optional components, and project directory. The LiteOS-M kernel is divided into the hardware layer and hardware-irrelevant layers. The hardware layer provides a unified hardware abstraction layer (HAL) interface for easier hardware adaptation. A range of compilation toolchains can be used with different chip architectures to meet the expansion of diversified hardware and compilation toolchains in the Artificial Intelligence of Things (AIoT) field. Figure1 shows the architecture of the LiteOS-M kernel.

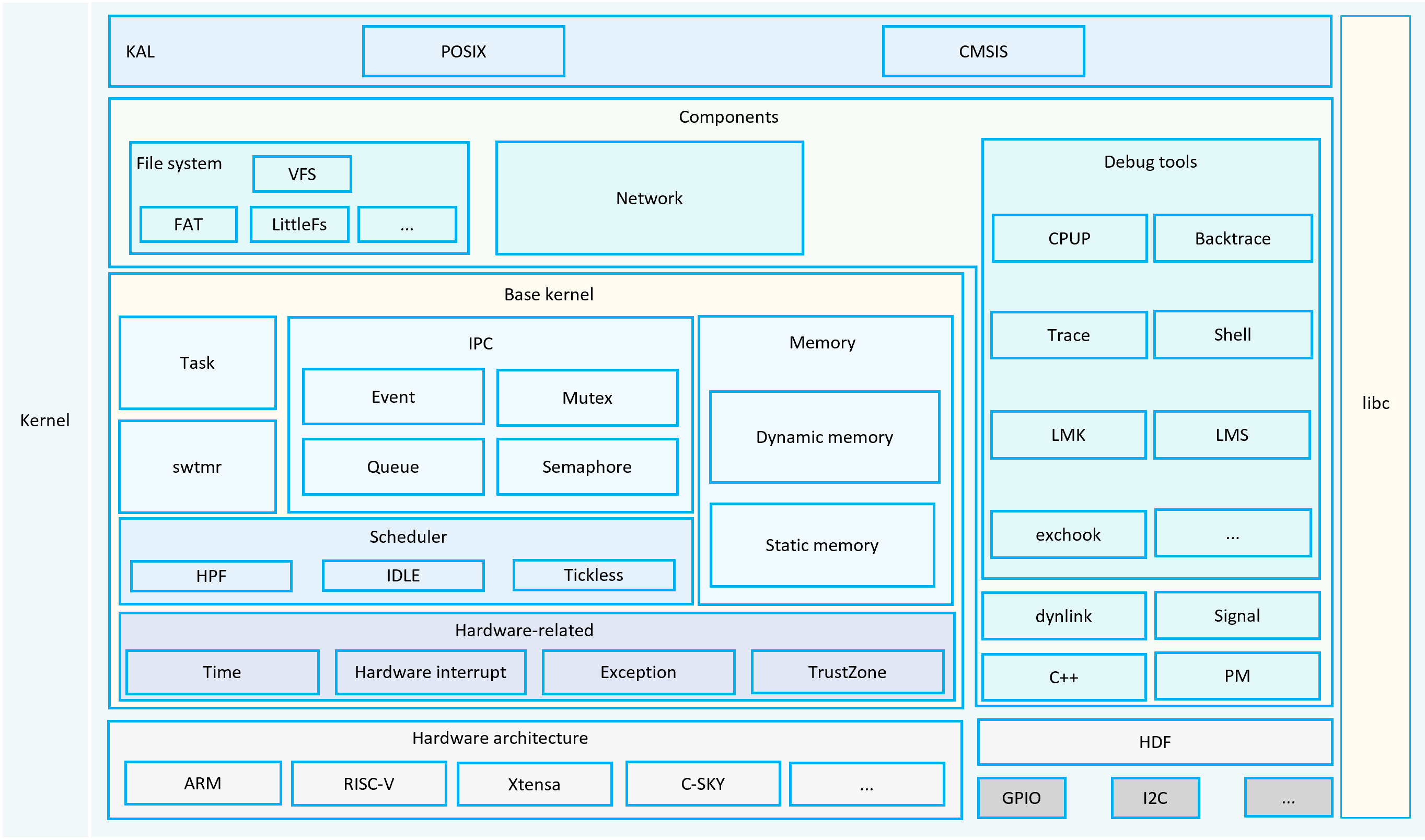

Figure 1 Architecture of the OpenHarmony LiteOS-M kernel
Directory Structure
The directory structure is as follows. For more details, see arch_spec.md.
/kernel/liteos_m
├── arch # Code of the kernel instruction architecture layer
│ ├── arm # Code of the ARM32 architecture
│ │ ├── arm9 # Code of the ARM9 architecture
│ │ ├── cortex-m3 # Code of the cortex-m3 architecture
│ │ ├── cortex-m33 # Code of the cortex-m33 architecture
│ │ ├── cortex-m4 # Code of the cortex-m4 architecture
│ │ ├── cortex-m7 # Code of the cortex-m7 architecture
│ │ └── include # Arm architecture public header file directory
│ ├── csky # Code of the csky architecture
│ │ └── v2 # Code of the csky v2 architecture
│ ├── include # APIs exposed externally
│ ├── risc-v # Code of the risc-v architecture
│ │ ├── nuclei # Code of the nuclei system technology risc-v architecture
│ │ └── riscv32 # Code of the risc-v architecture
│ └── xtensa # Code of the xtensa architecture
│ └── lx6 # Code of the lx6 xtensa architecture
├── components # Optional components
│ ├── backtrace # Backtrace support
│ ├── cppsupport # C++ support
│ ├── cpup # CPU percent (CPUP)
│ ├── dynlink # Dynamic loading and linking
│ ├── exchook # Exception hooks
│ ├── fs # File systems
│ ├── lmk # Low memory killer functions
│ ├── lms # Lite memory sanitizer functions
│ ├── net # Networking functions
│ ├── power # Power management
│ ├── shell # Shell function
│ ├── fs # File systems
│ └── trace # Trace tool
├── drivers # driver Kconfig
├── kal # Kernel abstraction layer
│ ├── cmsis # CMSIS API support
│ └── posix # POSIX API support
├── kernel # Minimum kernel function set
│ ├── include # APIs exposed externally
│ └── src # Source code of the minimum kernel function set
├── testsuites # Kernel testsuites
├── tools # Kernel tools
├── utils # Common directory
Constraints
OpenHarmony LiteOS-M supports only C and C++.
Applicable architecture: See the directory structure for the arch layer.
As for dynamic loading module, the shared library to be loaded needs signature verification or source restriction to ensure security.
Usage
The OpenHarmony LiteOS-M kernel build system is a modular build system based on Generate Ninja (GN) and Ninja. It supports module-based configuration, tailoring, and assembling, and helps you build custom products. This document describes how to build a LiteOS-M project based on GN and Ninja. For details about the methods such as GCC+gn, IAR, and Keil MDK, visit the community websites.
Setting Up the Environment
Before setting up the environment for a development board, you must set up the basic system environment for OpenHarmony first. The basic system environment includes the OpenHarmony build environment and development environment. For details, see Setting Up Development Environment.
Obtaining the OpenHarmony Source Code
For details about how to obtain the source code, see Source Code Acquisition. This document assumes that the clone directory is ~/openHarmony after the complete OpenHarmony repository code is obtained.
Example projects
Qemu simulator: arm_mps2_an386、esp32、riscv32_virt、SmartL_E802. For details about how to compile and run, see qemu guide.
Bestechnic: bes2600. For details about how to compile and run, see Bestechnic developer guide.
Community Porting Project Links
The LiteOS-M kernel porting projects for specific development boards are provided by community developers. The following provides the links to these projects. If you have porting projects for more development boards, you can provide your links to share your projects.
-
Cortex-M3:
-
STM32F103 https://gitee.com/rtos_lover/stm32f103_simulator_keil
This repository provides the Keil project code for building the OpenHarmony LiteOS-M kernel based on the STM32F103 chip architecture. This code supports build in Keil MDK mode.
-
-
Cortex-M4:
-
STM32F429IGTb https://gitee.com/harylee/stm32f429ig_firechallenger
This repository provides the project code for porting the OpenHarmony LiteOS-M kernel to support the STM32F429IGTb development board. The code supports build in Ninja, GCC, and IAR modes.
-
Contribution
Liteos-M kernel coding style guide
How to contribute a chip based on Liteos-M kernel:
Board-Level Directory Specifications
