##modbus-tcp##

1. 简介

在xiuos平台实现modbusTCP协议包括协议报文组装、解析和数据传输支持主从通信。

2. 数据结构设计说明

2.1 数据结构定义

首先需要定义设备存储区的结构体包括两种存储类型16位的寄存器和线圈。

//定义存储区结构体
typedef struct MbMemory
{
    coils8_t*rcoil_mem;
    reg_t*rreg_mem;
    coils8_t*rwcoil_mem;
    reg_t*rwreg_mem;
}MBmemoryType;

然后便是关于ModbusTCP协议相关的结构体定义包括MBAP和PDU后续数据区视情况而定长短不固定。

//协议的固定部分为12个字节当功能码为写多个数据时后续还有不定长的数据部分
typedef struct mbap
{
    //MbapType
    u16_t tid;
    u16_t pid;
    u16_t len;
    u8_t uid;

    /* data */
}MbapType;

typedef struct pdu
{
    u8_t func;

    u16_t addr;

    u8_t operand1;
    u8_t operand2;
    /* data */
}PduType;

2.1 从设备请求解析和响应部分

主要定义请求的解析器结构,以及每种功能码对应的解析函数,和发送响应的函数。

//定义解析器结构体
typedef struct mbparser
{
    int (*func_set[20])(MBmemoryType*,int,MbapType*,PduType*,u8_t**resp);
}MbParserType;

//功能码解析函数
int FuncReadRwCoilX01(MBmemoryType*mem,int fd,MbapType*mbap,PduType*pdu,u8_t**resp);
int FuncReadRCoilX02(MBmemoryType*mem,int fd,MbapType*mbap,PduType*pdu,u8_t**resp);
int FuncReadRwRegX03(MBmemoryType*mem,int fd,MbapType*mbap,PduType*pdu,u8_t**resp);
int FuncReadRRegX04(MBmemoryType*mem,int fd,MbapType*mbap,PduType*pdu,u8_t**resp);
int FuncWriteRwCoilX05(MBmemoryType*mem,int fd,MbapType*mbap,PduType*pdu,u8_t**resp);
int FuncWriteRwRegX06(MBmemoryType*mem,int fd,MbapType*mbap,PduType*pdu,u8_t**resp);
int FuncWriteRwMcoilsX0f(MBmemoryType*mem,int fd,MbapType*mbap,PduType*pdu,u8_t**resp);
int FuncWriteRwMregsX10(MBmemoryType*mem,int fd,MbapType*mbap,PduType*pdu,u8_t**resp);
int FuncReportSlaveIDX11(MBmemoryType*mem,int fd,MbapType*mbap,PduType*pdu,u8_t**resp);


/**
 * @description: 制作响应报文
 * @param  {MbapType*mbap,PduType*pdu,u8_t**resp,u16_t buf_len}
 * @return {}
 * @Author: pgh_dd 1041315949@qq.com
 * @LastEditors: pgh_dd 1041315949@qq.com
 */
void MakeResponse(MbapType*,PduType*,u8_t**,u16_t);

/**
 * @Description: 发送响应报文
 * @param {int} fd 套接字对应文件描述符
 * @param {u16_t} n 报文大小
 * @return {int}
 * @Date: 2023-07-25 17:24:55
 * @Author: pgh_dd 1041315949@qq.com
 */
int SendResponse(int fd,u8_t**buf,u16_t n);


2.2 主设备的请求包装和发送部分

/**
 * @Description: 读取键盘输入,并生成请求报文
 * @param {u8_t} flag
 * @return {int}
 * @Date: 2023-07-25 17:25:26
 * @Author: pgh_dd 1041315949@qq.com
 * @LastEditors: pgh_dd 1041315949@qq.com
 */
int GenerateModbusRequest(MbapType*,PduType*,u8_t flag,u8_t**request);

/**
 * @Description: 发送请求报文
 * @param {int fd,u8_t**request,int n}
 * @return {}
 * @Date: 2023-07-25 17:26:10
 * @Author: pgh_dd 1041315949@qq.com
 * @LastEditors: pgh_dd 1041315949@qq.com
 */
void SendModbus(int fd,u8_t**request,int n);

/**
 * @Description: 读取请求报文
 * @param {int fd,MbapType*mbap,PduType*pdu}
 * @return {void}
 * @Date: 2023-07-25 17:26:49
 * @Author: pgh_dd 1041315949@qq.com
 * @LastEditors: pgh_dd 1041315949@qq.com
 */
void GetRequest(int fd,MbapType*,PduType*);

3. 测试程序说明

modbusTCP协议基于TCP协议因此其主从通信实际上是基于TCP的S/C通信因此分为服务端和客户端。

服务端部分从设备程序实际上是一个被动接受请求报文的TCP服务器程序除了一些基础参数的定义外主要包括一个无限循环的服务程序包括报文的接收以及对存储区的操作和生成发送响应。

static void *ModbusTcpServer(void *arg)
{
    //设置IP和子网掩码网关
    u8_t uid=1;//定义从设备id和存储区

    MBmemory mbm;//定义存储区
    if(mb_memory_init(&mbm)==-1)//初始化存储区,包括对四个存储区进行内存分配
    {
        return 0;
    };

    MBparser mb_parser;//初始化功能码解析器
    MBparser_init(&mb_parser,MBTCP);//初始化解析器,将功能码对应函数注册

    int fd=create_socket(PORT);//创建监听套接字
    if(fd==-1)return 0;

    if (listen(fd, 10) != 0 ) {
        lw_error("Unable to listen\n");
        close(fd);
        return 0;
    }

    while(1)
    {
        //建立连接,因为每次接受的连接可能不是同一个设备发来的,因此需要把建立连接部分放在循环体内。
        struct sockaddr_in tcp_addr;
        socklen_t addr_len;

        printf("wait accept\n");
        int clientfd = accept(fd, (struct sockaddr *)&tcp_addr, (socklen_t*)&addr_len);

        if(clientfd==-1)
        {
            lw_error("Unable to listen\n");
            return 0;
        }

        while(1)
        {
            MBAP mbap;
            PDU pdu;
            read_mbtcp_MBAP(clientfd,&mbap);//读取数据前7字节为mbap初始化

            if(mbap.uid!=uid){//检验是否为此从机
                close(clientfd);
                break;
            }


            read_mbtcp_PDU(clientfd,&pdu);//读取pdu和一些定长部分

            printf("OP:%x\n",pdu.func);
            printf("ADDR:%x\n",pdu.addr);

            u8_t** response_buf;//定义操作返回的指针
            u8_t buf_len=mb_parser.func_set[pdu.func](&mbm,clientfd,&mbap,&pdu,response_buf);//请求的解析和对存储区的操作

            send_response(clientfd,response_buf,buf_len);//发送响应
            // return NULL;
            //执行操作

        }
        close(clientfd);
    }
    close(fd);
    mb_memory_free(&mbm);//释放存储区
}

客户端部分主设备是一个主动发送请求的TCP客户端程序主要包括一个接受键盘输入的循环体可以接受用户输入的指令然后包装成Modbus请求报文并发送给ModbusTCP服务器然后接受响应报文。

static void *ModbusTcpClient(void *arg)
{
    u16_t counter=0;
    int fd = -1;
    int ret;

	// lw_print("2023-05-27 Peng Guanhua\n");
    lw_print("%s start\n", __func__);

    fd = socket(AF_INET, SOCK_STREAM, 0);//定义服务器套接字
    if (fd < 0) {
        lw_print("Socket error\n");
        return NULL;
    }

    char tcp_ip_str[128]="192.168.31.148";//服务器ip和端口号
    u16_t tcp_socket_port=6000;

	/*建立套接字连接*/
    printf("%s\n",tcp_ip_str);
    struct sockaddr_in tcp_sock;
    tcp_sock.sin_family = AF_INET;
    tcp_sock.sin_port = htons(tcp_socket_port);
    tcp_sock.sin_addr.s_addr = inet_addr(tcp_ip_str);
    printf("%s\n",tcp_ip_str);

    memset(&(tcp_sock.sin_zero), 0, sizeof(tcp_sock.sin_zero));

    ret = connect(fd, (struct sockaddr *)&tcp_sock, sizeof(struct sockaddr));

    if (ret < 0) {
        lw_print("Unable to connect %s:%d = %d\n", tcp_ip_str, tcp_socket_port, ret);
        close(fd);
        return NULL;
    }

    lw_print("TCP connect %s:%d success, start.\n", tcp_ip_str, tcp_socket_port);



    while (1) {

        MBAP mbap={counter,0,0,0};
        PDU pdu;
        u8_t*request;

        int mesg_len=generate_modbus_request(&mbap,&pdu,MBTCP,&request);//此函数中接收键盘输入,并生成请求报文。
        send_modbus(fd,&request,mesg_len);//发送请求报文。
        get_response(fd,&mbap,&pdu);//接收响应报文,并显示
        counter++;
    }

    close(fd);
    return NULL;
}

4. 运行结果

4.1 从设备通信测试

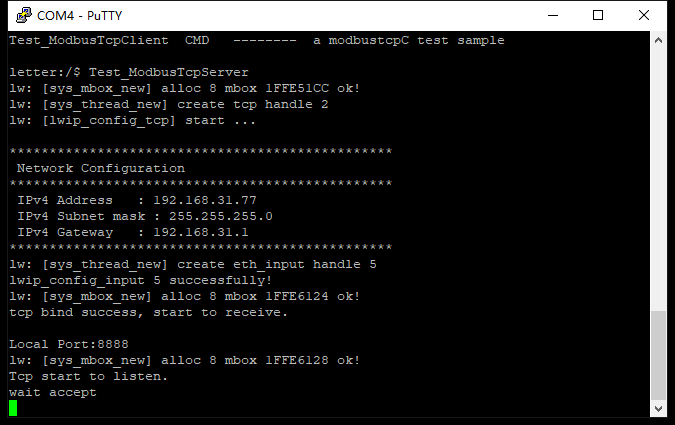

从设备测试在终端上将TCP服务端程序打开如图1等待主设备的连接。

alt 图1从设备等到主设备连接

主设备采用Modbus Poll应用程序建立TCP连接如图2所示。

alt 图2主设备与从设备建立TCP连接

此时modbus poll程序便会不断的向从设备发送请求如图3。

alt 图3从设备接收从设备请求报文并响应

可以看到解析出的功能码、地址以及对应的响应报文然后我们在modbus poll上修改一下存储区数据。如图4所示。

alt 图4

因为修改的是寄存器存储区的值因此对应0x10功能码然后看看从设备的反映。如图5所示。

alt 图5

可见成功收到功能码,并返回了响应的报文。

alt 图6

modbus poll显示响应成功存储区已成功修改期望的值。

alt 图7

可见存储区已成功修改。

线圈部分的查询修改同理,不再赘述。

4.2主设备通信测试

首先打开modbus slave应用程序用以作为从设备然后将存储区数据修改用以测试并打开TCP端口等待主设备的连接如图8所示。

alt 图8

同样在终端打开从设备程序从设备的ipport在源码中已定义好所以打开时已经连接上如图9所示。

alt 图9

开始输入从设备id功能码以及其他信息用以生成请求报文。

alt 图10

如图10所示输入功能码3对应读取寄存器功能地址从0开始数量4然后便会生成请求报文然后发送结果如图11所示。

alt

可见,已成功查询到寄存器的值。

然后测试写入功能输入功能码15(0xf)对应写入多个线圈功能如图12modbus slave对应的响应结果如图13所示。

alt 图12

写入线圈的值为5个分别为1 0 1 0 1。发送成功后modbus salve中显示如图13所示。

alt 图13

可见,已成功修改。

其他功能码测试过程类似,不再赘述。
